Panel

It sets up showing or hiding of each panel.

Docking panels to the main window

If you want to move a panel, mousedrag a title bar of a panel.

When a panel approaches the edge of the main window, it docks with the main window. A panel docked with the main window can be separated by dragging the title bar. And when you press Ctrl key, the panel will not dock.

mouseRight-click on the title bar to display a menu. If [Dockable] is unchecked, a panel will not dock with the main window.

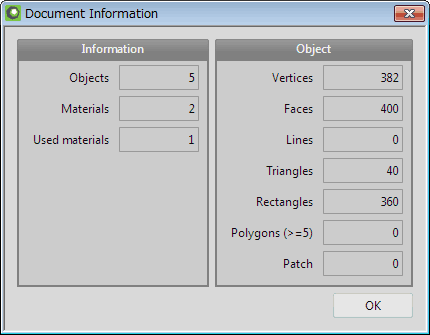

Document Information

It displays a document's and objects' information.

Second View (for EX edition)

It opens another window and displays 3D view in the window.

It is effective for multiple monitors.

Paint Panel

It shows the panel for editing mapping images. [Details]

Script Editor (for Standard/EX editions)

It shows the display for editing Python script. [Details]

Object Panel

It selects the current object, sets up visibility and editing, and shows the panel for setting up details on objects. [Details]

Material Panel

It selects the current material and shows the panel for setting up details on the material. [Details]

Tool Panel

It displays a panel for registering buttons, menus and scripts.

Register to Tool Panel
Buttons and menus in the main window can be registered to the Tool Panel by mouseright-click menu on them. And scripts can be registered in [File > Register to Tool Panel] in the Script Panel.
Execute
The command is executed by mouseclicking the button.
Change positions
The position of the button can be changed by mousedragging on it.
Right-click menu
The button can be edited in the mouseright-click menu.
  • Execute - The command is executed.
  • Load a script - Script file is loaded to script editor. (Script button only)
  • Register shortcut key - Open shortcut key editor and register shortcut key for the command. (Script button only)
  • Edit - The name of the button can be changed.
  • Delete - The button can be deleted.

Edit Panel

It can operate the selected part on each axis without using [Move] [Scale] [Rotate] command.

You can scale up and down in the equal ratio with mousedragging on an icon.

The picture rotates by 15 degrees at a time while you press the shift key.

Command Panel

It switches showing or hiding of Command Panel on the left side (or the right side) of the screen.
